Gaskets

[seb421]

....

Updated first post with working link and instructions >

Link >>>

http://ukbiker.me/Firestorm-Gaskets.pdf

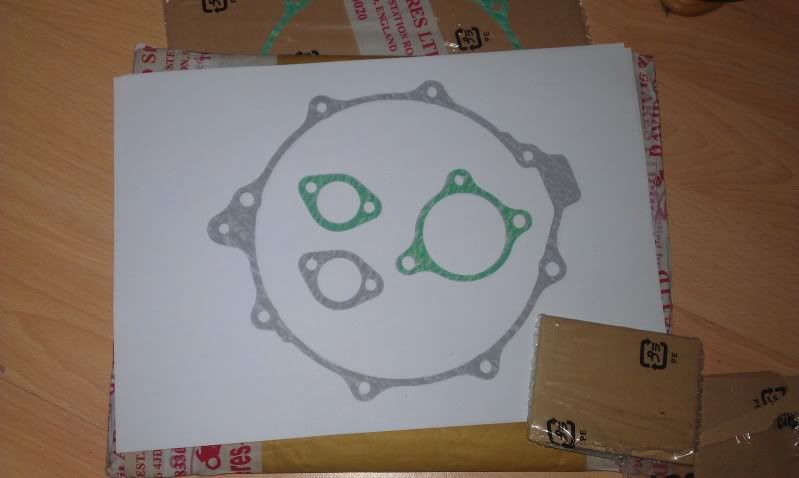

Right ive Stuck them together in one PDF, so its two CCT's a Clutch slave and the Gen gasket on one A4 print out

all you have to do then is cut out with a craft knife or blade

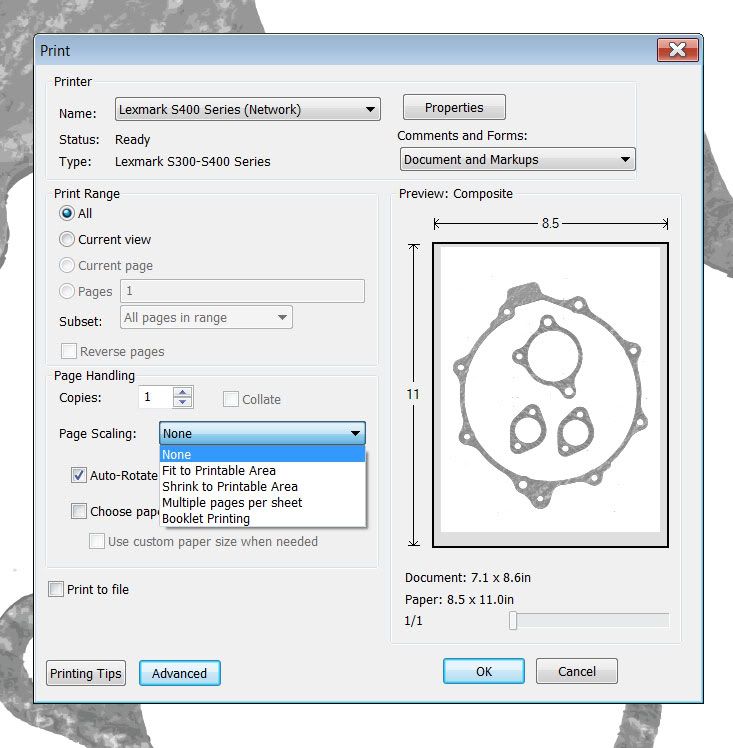

Just make sure page scale is set to none >





Cost of Gasket paper is very cheep on ebay in comparison to buying Factory made items and will be a lot quicker than an order from Dave Silvers that I can assure you!

As long as you tell your printer not to resize them etc, then they will print to scale, i have tested them and they line up perfect

[seb421]

Ahhh bit of a problem, just found out that when i try to print it from anything other than a .PSD file (photoshop) then scale goes well off, so unless you have photoshop you may have issues trying to get them to scale

So will link them as a .PSD file and if dont have photoshop you can nip round to the nerd on the estate armed with a USB stick and some A4 gasket paper

I could measure them so you could set scale, but i dont have a rule to hand and not going looking now.

[seb421]

See Bottom post for Downloads

[Kev L]

Well done Seb. Can this be made into a sticky and any other similar scans be added to this thread?

[benny hedges]

Ahhh bit of a problem, just found out that when i try to print it from anything other than a .PSD file (photoshop) then scale goes well off, so unless you have photoshop you may have issues trying to get them to scale

.

yeh m8 thats why i suggested using some squared paper to copy / scan them onto... then regardless what size they come out, you will know the paper has 1/2cm squares so will be able to adjust it to scle easy

maximum rep for your efforts there m8

[Wicky]

Right I've tidied the PSD files and converted them in Illustrator to vector PDF files making them considerably more compact. Just make sure the printer prints them out real size.

http://cl.ly/DKKQ CCT gasket

http://cl.ly/0E1z3M0z293k2h2t3Y3L Clutch Slave gasket

http://cl.ly/2M1M0E1U0D1E1Q2B1t3t Generator Cover Gasket

[lloydie]

Could we have these in the workshop knowledge base as a sticky please


Sorry officer
The voices made me do it

[seb421]

Right I've tidied the PSD files and converted them in Illustrator to vector PDF files making them considerably more compact. Just make sure the printer prints them out real size.

http://cl.ly/DKKQ CCT gasket

http://cl.ly/0E1z3M0z293k2h2t3Y3L Clutch Slave gasket

http://cl.ly/2M1M0E1U0D1E1Q2B1t3t Generator Cover Gasket

Cheers mate, would have pissed about with them more but it was well late and was bolloxed.

will try get my hand on some more when i get paid and share them out too.


i need them any way as im going to take the original engine apart soon when weather warms up.

[seb421]

Right ive Stuck them together in one PDF, so its two CCT's a Clutch slave and the Gen gasket on one A4 print out

all you have to do then is cut out with a craft knife or blade

http://www.mediafire.com/?pd2ew90uue7l007

Just make sure page scale is set to none >

[seb421]

Does any one have a Clutch Cover Gasket I can borrow, scan and send back?

Was going to order one of silvers as I'm not in desperate need of one but comes to nearly 20 quid delivered for the one gasket

[tony.mon]

Yep.
PM me your address and I'll get it over to you.

[seb421]

Yep.
PM me your address and I'll get it over to you.

thanks tony sending PM now

[griffo117]

Thanks seb this is going to come in handy for a lot of riders

[griffo117]

does anyone have the head gaskets pdf???????

[seb421]

does anyone have the head gaskets pdf???????

They ain't made from the same paper type stuff so didn't bother with them
