givi hard luggage pictures needed

[agentpineapple]

i'm trying to fit a full hard luggage system by givi. but I can't find a single picture of a givi system fitted to a storm without the boxes fitted.
has anyone got/use one of these systems, or has anyone got any pictures I could study, to make sure it's fitted correctly.

[MacV2]

i'm trying to fit a full hard luggage system by givi. but I can't find a single picture of a givi system fitted to a storm without the boxes fitted.
has anyone got/use one of these systems, or has anyone got any pictures I could study, to make sure it's fitted correctly.

Eh... try contacting Givi ?

[firestorm_al]

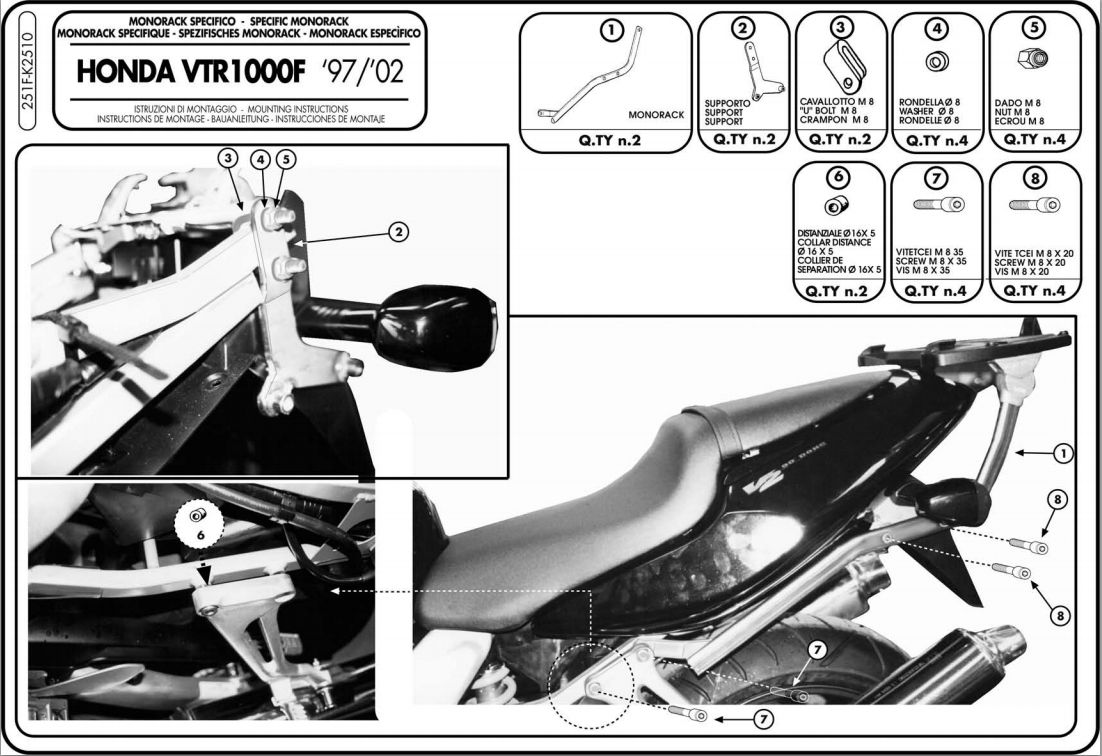

This is the instructions for mounting the Givi topbox rack. As far as I'm aware they didn't do an official pannier mounting kit so if you have one it may be a DIY addition.

[agentpineapple]

This is the instructions for mounting the Givi topbox rack. As far as I'm aware they didn't do an official pannier mounting kit so if you have one it may be a DIY addition.


cheers mate. sadly I know that bid....
it's details of the wing rack sections for hard side panniers. worst ways i'll contact givi as mac said, I was just hoping someone had a picture of there's knocking around.

[Stratman]

I used to run a full hard luggage system on mine. It was Kappa, with the wingracks etc. There is no standard fitting kit for the VTR but they did a universal kit which needed some slight modifications, but it did work well. I may have some pics but it was over 10 years ago when I then decided to get a second bike to tour on. I'll have a look.

[agentpineapple]

I used to run a full hard luggage system on mine. It was Kappa, with the wingracks etc. There is no standard fitting kit for the VTR but they did a universal kit which needed some slight modifications, but it did work well. I may have some pics but it was over 10 years ago when I then decided to get a second bike to tour on. I'll have a look.

sorry for the late reply mate, if you could find some pictures I would be grateful. I've just got a reply from givi, which is a waste of time.

Good Morning and thank you for your email.

I would advise that for the 97-04 model of the Honda VTR 1000F the only compatible accessory we currently produce is a rear rack (part number) 251F and fitting instructions can be accessed and downloaded via the following weblink to the Givi.co.uk website; https://www.givi.co.uk/my-motorcycle#HO ... _(97_>_04).

so basically no help at all.......

i'm sure I can make them fit, the tough bit is spacing them out over the high level end cans, and I will have to relocate the rear indi's

[Wicky]

spacing them out over the high level end cans,

You'll need a sizeable gap to avoid melting

Or get some these secondhand

[agentpineapple]

spacing them out over the high level end cans,

You'll need a sizeable gap to avoid melting

Or get some these secondhand

i'm planning on at least a 2cm gap between the rack and the cans, I could always put some heat resisting matting on the back of the hard panniers, but I doubt i'll need it.

[Wicky]

It'd be better to use more standard low mounted exhausts as the pannier frame kit will probably have to be more heavily modded to accommodate the extra width of hi-mounts.

[Stratman]

I've found some - and I think I still have the two wingracks kicking about in the garage somewhere. I'll have a look later and see what remains. I used the link plate for the top case on my TDM but that's easily replaced. You won't be able to use high levels though.

The following don't show the mountings.

[VTRDark]

Lots of VTR pics on this site for inspiration. Have a look at the panniers on the yellow on the first page.

VTR Pic Archive
